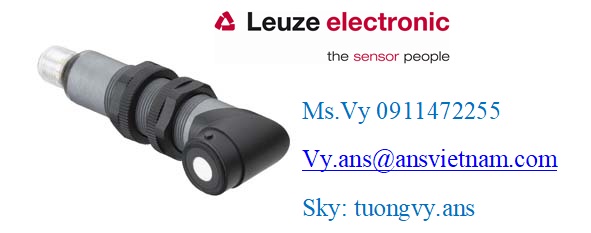

- Series318
- Contains2x M18 mounting nut
-
Optical data
- Opening angle8 °
- Direction of beam90° - deflection
-
Measurement data
- Measurement range150 ... 1,600 mm
- Resolution< 2 mm
- Repeatability0.5 %
- Reference value repeatabilityEnd value
- Temperature drift5 %
-
Electrical data
- Protective circuitInductive protection, Short circuit protected, Polarity reversal protection
-
Performance data
- Supply voltage10 ... 30 V, DC
- Residual ripple0 ... 7 %, From UB
- Open-circuit current0 ... 50 mA
- Switching hysteresis1 %
-
Outputs
- Number of analog outputs1 Piece(s)
- Number of digital switching outputs1 Piece(s)
- Load resistance0 ... 500 Ω
- Characteristic curveRising / falling
-
Analog outputs
- Current4 ... 20 mA
-
Switching outputs
- Switching current, max.100 mA
-
Switching output 1
- Switching elementTransistor, NPN
- Switching principleNO (normally open)
-
Inputs/outputs selectable
- Number of inputs/outputs selectable1 Piece(s)
-
Timing
- Switching frequency2 Hz
- Ultrasonic frequency230 kHz
- Response time250 ms
-
Connection
-
Connection 1
- Type of connectionConnector
- Thread sizeM12
- MaterialPlastic
- No. of pins5 -pin
- EncodingA-coded
-
-
Mechanical data
- DesignCylindrical
- Thread sizeM18 x 1 mm
- Dimension (Ø x L)18 mm x 88.3 mm
- Housing materialPlastic, Polybutylene (PBT)
- Sensing face materialPlastic, Epoxy resin, glass fiber reinforced
- Ultrasonic transducer materialPiezoceramics (contains lead zirconium titanate (PZT))
- Net weight70 g
-
Operation and display
- Type of displayLED
- Number of LEDs3 Piece(s)
- Operational controlsControl buttons
- Function of the operational controlSensitivity adjustment, NC contact / NO contact changeover
-
Environmental data
- Ambient temperature, operation-20 ... 70 °C
- Ambient temperature, storage-20 ... 70 °C
-
Certifications
- Degree of protectionIP 67
- Protection classIII
- Certificationsc UL US
- Standards appliedIEC 60947-5-2
-
Classification
- Customs tariff number85365019
- eCl@ss 8.027270804
- eCl@ss 9.027270804
- ETIM 5.0EC001846
