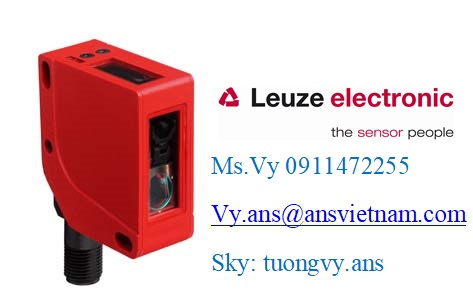

ODSL 9/L-650-S12 - Optical distance sensor

  • Technical features
  • Accessories
  • Downloads
  • Close all groups
    • Basic data
      • Series9
      • Type of scanning systemAgainst object
    • Optical data
      • Light sourceLaser, Red
      • Laser class2, IEC/EN 60825-1:2007
      • Light-spot size [at sensor distance]1 mm
    • Measurement data
      • Measurement range50 ... 650 mm
      • Resolution0.1 ... 0.5 mm
      • Measuring accuracy1 %
      • Reference value, accuracy of measurementMeasurement distance
      • Repeatability0.5 %
      • Reference value repeatabilityMeasurement distance
      • Measurement time2 ms
      • ReferencingNo
      • Black/white behavior0.5 %
      • Optical distance measurement principleTriangulation
    • Electrical data
      • Performance data
        • Supply voltage18 ... 30 V, DC
    • Interface
      • TypeIO-Link
      • IO-Link
        • SpecificationV1.0.1
    • Connection
      • Connection 1
        • Type of connectionConnector, Turning, 90°
        • Thread sizeM12
        • MaterialPlastic
        • No. of pins5 -pin
    • Mechanical data
      • Dimension (W x H x L)21 mm x 50 mm x 50 mm
      • Housing materialPlastic, PC
      • Lens cover materialGlass
      • Net weight50 g
    • Operation and display
      • Type of configurationSoftware
      • Operational controlsLC Display, Control buttons, PC software
    • Environmental data
      • Ambient temperature, operation-20 ... 50 °C
      • Ambient temperature, storage-30 ... 70 °C
    • Certifications
      • Degree of protectionIP 67
      • Protection classII
      • Certificationsc UL US
      • Standards appliedIEC 60947-5-2
    • Classification
      • Customs tariff number90318020
      • eCl@ss 8.027270801
      • eCl@ss 9.027270801
      • ETIM 5.0EC001825
