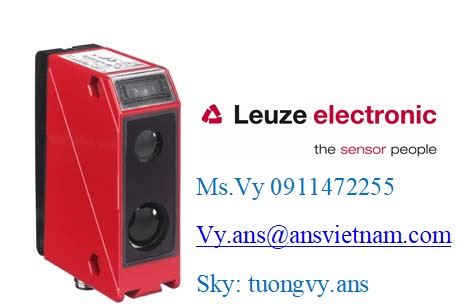

- Series96
- Type of scanning systemAgainst object
-
Optical data
- Light sourceLED, Infrared
- Light-spot size [at sensor distance]15 mm x 15 mm
-
Measurement data
- Measurement range120 ... 1,400 mm
- Resolution0.1 ... 2.0 mm
- Accuracy of measurement, short range1.5 %
- Accuracy of measurement, distant range2 %
- Reference value, accuracy of measurementMeasurement distance
- Repeatability, short range0.5 %
- Repeatability, distant range1 %
- Reference value repeatabilityMeasurement distance
- Measurement time1 ... 5 ms
- ReferencingNo
- Black/white behavior1 %
- Optical distance measurement principleTriangulation
-
Electrical data
-
Performance data
- Supply voltage18 ... 30 V, DC
-
Outputs
- Number of analog outputs1 Piece(s)
- Number of digital switching outputs1 Piece(s)
-
Analog output 1
- TypeVoltage
-
Switching output 1
- Switching elementTransistor, Push-pull
-
-
Connection
-
Connection 1
- Type of connectionConnector
- Thread sizeM12
- MaterialMetal
- No. of pins5 -pin
-
-
Mechanical data
- Dimension (W x H x L)30 mm x 90 mm x 70 mm
- Housing materialMetal, Diecast zinc
- Lens cover materialGlass
- Net weight380 g
-
Operation and display
- Type of configurationSoftware
- Operational controlsMembrane keyboard, PC software
-
Environmental data
- Ambient temperature, operation-20 ... 50 °C
- Ambient temperature, storage-30 ... 70 °C
-
Certifications
- Degree of protectionIP 67, IP 69K
- Protection classII
- Certificationsc UL US
- Standards appliedIEC/EN 60947-5-2
-
Classification
- Customs tariff number90318020
- eCl@ss 8.027270801
- eCl@ss 9.027270801
- ETIM 5.0EC001825
