Description

  • Temperature Limits:
    -200 ... +600° C
  • Tolerance: UNI 7937, IEC 751 standards:
    ± 0.15° C a 0° C for class A (1/2 DIN)
    ± 0.30° C a 0° C for class B (1 DIN)
    ± 0.10° C a 0° C for 1/3 DIN class

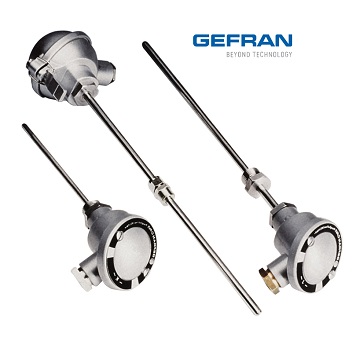

  • Compact mineral insulated (MgO) resistance thermometer element (Pt100 at 0°C) and continuous metal sheath
  • Application versatility
