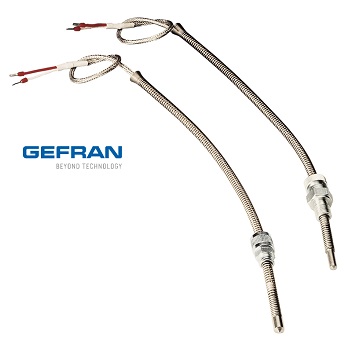

Description

  • Temperature limits:
    -40 ... +250°C
    (see table for type of extension cable used)
  • Tolerance: UNI 7937, IEC 751 standards:
    ± 0.15°C at 0°C for class A (1/2 DIN)
    ± 0.30°C at 0°C for class B (1 DIN)
  • PT100 at 0°C sensor
  • Stainless steel AISI 303 sheath
  • Adjustment spring thread connection: 8mm diameter, 300mm length
