Description

  • Temperature Limits:
    -200 ... +600° C
  • Tollerance: UNI 7937, IEC 751 standards:
    ± 0.15° C a 0° C for class A (1/2 DIN)
    ± 0.30° C a 0° C for class B (1 DIN)
    ± 0.10° C a 0° C for 1/3 DIN class
  • Insulation: > 100 MOhm for voltage values from 10 to 100 Vcc.

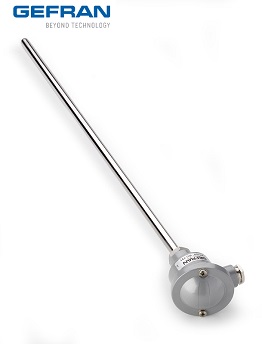

  • PT100 wire-wound resistance thermometer
  • Mineral insulated interchangeable insert
  • Application versatility
