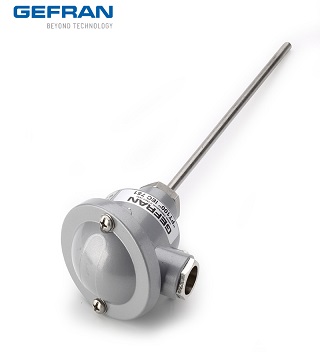

AR6M MgO amplified output - General purpose

Nhà cung cấp: ANH NGHI SON

Hãng sản xuất: GEFRAN VIET NAM

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

Description

  • 4...20mA Transmitter
  • Amplified output signal
  • Temperature limits: - 200 ... + 600° C
  • Tolerance: UNI 7937, IEC 751 standards:
    ± 0.15° C a 0° C for class A (1/2 DIN)
    ± 0.30° C a 0° C for class B (1 DIN)
    ± 0.10° C a 0° C for 1/3 DIN class
  • Compact mineral insulated (MgO) resistance thermometer element (Pt100 at 0°C) and continuous metal sheath
  • Application versatility
