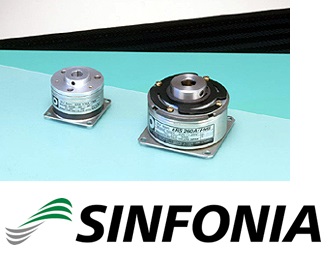

ERS-1225A/IMS Brake Sinfonia Vietnam ANSdanang

<ERS-1225A/IMS>
Type ERS-1225A/IMS
Static friction torque Nm 350
Rated voltage DC-V 24
Power consumption W(at75°C) 25
Weight kg 30
Unit:mm





Diameter direction
A 320.7
A1 117
C 318
D 161.97
Shaft direction
L 92.9
M 68.7
N 3.3
P 43
Q 49.9
Mounting
NJ P.C.D 184.1
Bolt M8×16
Shaft hole
d 50
b 12
t 53.5
