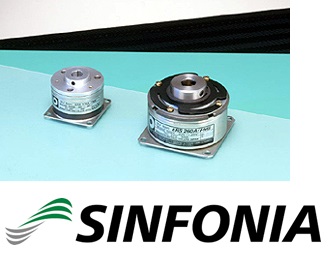

<EPR-250A>
Type EPR-250A
Clutch Brake
Static friction torque Nm 7
Rated voltage DC-V 24
Power consumption W(at75°C) 7 10
Weight kg 5.0





Dimensions Q shows effective length of φdh6.
Unit:mm



Diameter direction
A 116
B 44
C 58
E 29
G 9
H 117
Shaft direction
L 225
M 155
N 67.5
O 57
P 112.5
R 80
Z 7
Shaft edge
Q 31
QK 25
d 13
b 4
h 4
t 2.5
