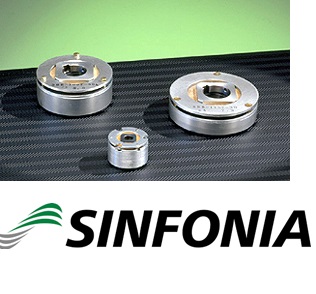

SBS-140 Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

SBS-140 Brake Sinfonia Vietnam ANSdanang

<SBS-140>
Type SBS-140
-4D -8D
Static friction torque Nm 30 60
Rated voltage DC-V 24
Power consumption W(at75°C) 28
Weight kg 8





  1. 2D and 6D types are custom made.
  2. A new clutch and brake may not have the rated torque at first.
Unit:mm
Build-to-order product



Diameter direction
A 140
A1 70
C 140
C1 36
D1 100
Shaft direction
K 9
L 95
P 29
Q 1
R 65
Mounting
CJ P.C.D 120
Screw M8×10
Shaft hole
d 25
b 7
t 28
Power box
DMP-63/24A
High frequency
controller
TMP-40D
EMP-70DB
CSM-55DB
CMPH-250/4HB
