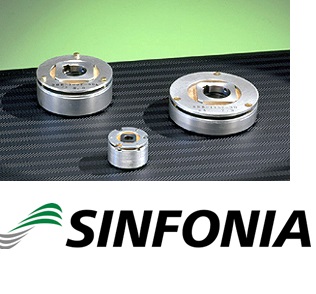

SBS-120 Brake Sinfonia Vietnam ANSdanang

<SBS-120>
Type SBS-120
-4D -8D
Static friction torque Nm 15 30
Rated voltage DC-V 24
Power consumption W(at75°C) 23
Weight kg 5





  1. 2D and 6D types are custom made.
  2. A new clutch and brake may not have the rated torque at first.
Unit:mm
Build-to-order product



Diameter direction
A 120
A1 60
C 120
C1 29
D1 80
Shaft direction
K 7
L 80
P 24
Q 1
R 55
Mounting
CJ P.C.D 100
Screw M6×10
Shaft hole
d 20
b 5
t 22
Power box
DMP-63/24A
High frequency
controller
TMP-40D
EMP-70DB
CSM-55DB
CMPH-250/4HB
