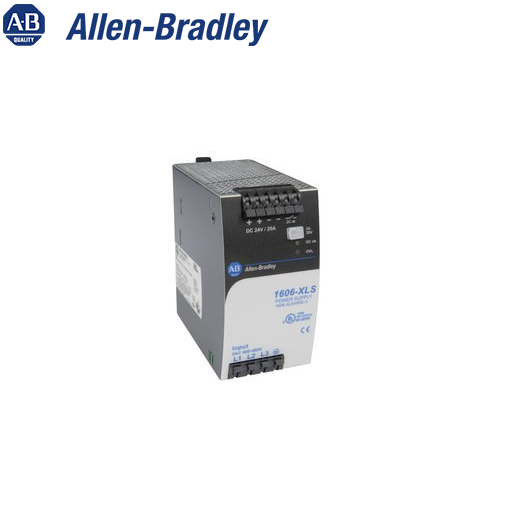

24V, 20A Single Phase Input POWER SUPPLY

Model: 1606-XLS480E

Specifications:

Output voltage DC 24V Adjustment range 24-28V





Output current

20A

30A

continuous, 24V

for typ. 4s, 24V

Output power

480W

720W

continuous, 24V

for typ. 4s, 24V

Output ripple

< 100mVpp

20Hz to 20MHz

Input voltage

Line frequency

AC Input current

Power factor

AC Inrush current

AC 100-240V

50-60Hz

4.56 / 2.48A

0.95 / 0.90

typ. 9 / 7A peak

±15%

±6%

at 120 / 230Vac

at 120 / 230Vac

at 120 / 230Vac

DC Input voltage

DC 110-300V -

-20%/+25%

DC Input current

4.7 / 1.7A

at 110 / 300Vdc

Efficiency

92.4 / 93.9%

at 120 / 230Vac

Losses

39.6 / 31.4W

at 120 / 230Vac

Temperature range

-25°C to +70°C

operational

Derating

12W/°C

+60 to +70°C

Hold-up time

typ. 32 / 51ms

at 120 / 230Vac
