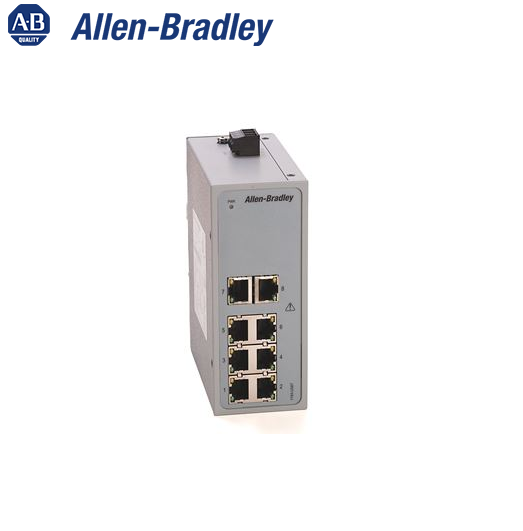

Allen-Bradley 1783-US8T Switch, Unmanaged, 8 Ports, RJ45 Copper, AC or DC

 Technical Specifications

Attribute

1783-US8T

Enclosure type rating

None (open-style)

Voltage and current ratings

DC power supply input: 20.4…27.6V DC/limited voltage

Current rating: 150 mA

Power consumption, max

3 W

Isolation voltage

Functional insulation type (IEC-61010-2-201), Ethernet Ports to Power ports

Wire size

Power connections:

Single wire: 0.33…3.3 mm² (22…12 AWG) stranded copper wire rated at 75 °C (167 °F), or greater, 1.2 mm (3/64 in.) insulation max

Double wire: 0.33…1.3 mm² (22…16 AWG) solid copper wire rated at 75 °C (167 °F), or greater, 1.2 mm (3/64 in.) insulation max

Wiring category

2 - on power ports

2 - on Ethernet ports

North American temp code

T4

ATEX temp code

T4

IECEx temp code

T4
