Dimensions:

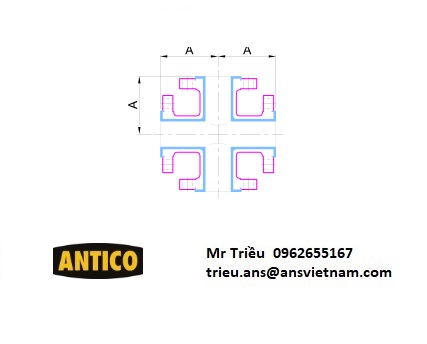

TO SUITE PIPEWORK NB Centre line to Face - A Flange Diameter Raised Face Diameter Steel Thickness Liner Thickness
inches mm Inches(mm) mm mm mm mm
1" 25 89 108 51 4.5 3.3
11/2" 40 102 127 73 5.0 3.3
2" 50 114 152 92 6.0 3.3
3" 80 140 190 127 6.0 3.3
4" 100 165 229 157 6.5 4.5
6" 150 203 279 216 8.0 5.5
