PFA/FEP/PVDF Lined Equal Unequal Tee

Nhà cung cấp: ANH NGHI SON

Hãng sản xuất: ANTICO VIET NAM

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0934 039 951

anhnghisonhcm

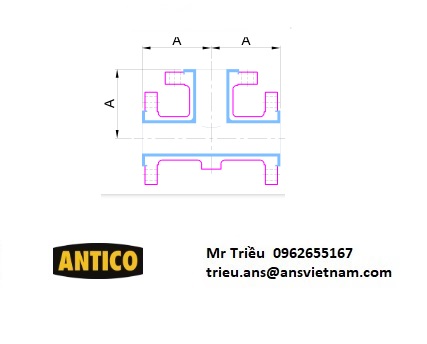

Dimensions:
TO SUITE PIPEWORK NB Centre line to Face - A Flange Diameter Raised Face Diameter Steel Thickness Liner Thickness
inches mm Inches(mm) mm mm mm mm
1" 25 89 108 51 4.5 3.3
11/2" 40 102 127 73 5.0 3.3
2" 50 114 152 92 6.0 3.3
3" 80 140 190 127 6.0 3.3
4" 100 165 229 157 6.5 4.5
6" 150 203 279 216 8.0 5.5

Dimensions:
TO SUITE PIPEWORK NB Centre line to Face - A Large Flange Diameter Large Flange Raised Face Diameter Small Flange Diameter Small Flange Raised Face Diameter
inches mm Inches(mm) mm mm mm mm
1"x3/4" 25x20 89 108 51 100 43
11/2"x1" 40x25 102 127 73 108 51
2"x1" 50x25 114 152 92 108 51
2"x11/2" 50x40 114 152 92 127 73
3"x1" 80x25 140 190 127 108 51
3"x11/2" 80x40 140 190 127 127 73
3"x2"  80x50  140  190  127  152  92
4"x1"  100x25  165  229  157  108  51
4"x11/2"  100x40  165  229   157  127  73
4"x2"  100x50  165  229   157  152  92
4"x3"  100x80  165  229   157  190  127
6"x2"  150x50  203  279  216  152  92
6"x3"  150x80  203  279  216  190  127
6"x4"  150x100  203  279  216  229  157
Specifications:
Components Material Material Standard
Body Housing Spheroidal Grey (Ductile) Iron ASTM A395/GG40.3 DIN EN 1563
Lining PFA / FEP ASTM D3307 / ASTM D2116
