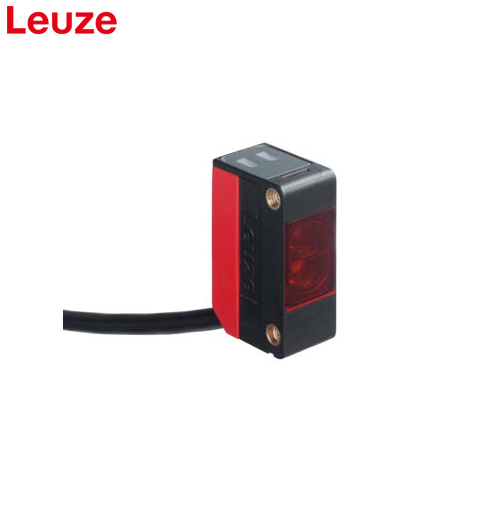

Model: LS5/9D-200-M12 Throughbeam photoelectric sensor transmitter Cảm biến quang Leuze

Specifications:

Series: 5

Operating principle: Throughbeam principle

Device type: Transmitter

Operating range: 0 ... 10 m

Operating range limit: 0 ... 15 m

Light source: LED, Red

Protective circuit: Polarity reversal protection, Short circuit protected

Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple

Residual ripple: 0 ... 15 %, From UB

Open-circuit current: 0 ... 15 mA

Number of deactivation inputs: 2 Piece(s)

Function: Voltage supply, Signal IN

Type of connection: Cable with connector

Cable length: 200 mm

Thread size: M12

Material: Plastic

No. of pins: 4 -pin
