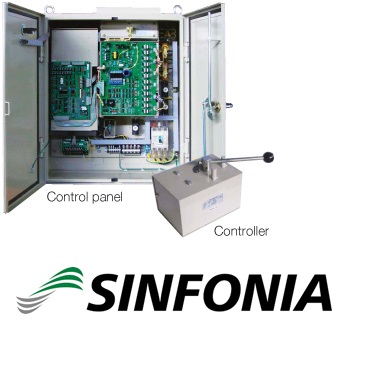

LMP contact-less type control panel Sinfonia
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: ACCURATE SENSOR
Mr. HuyLMP contact-less type control panel Sinfonia Vietnam ANSdanang
LMP Series
| Type | LMP-72A-D | LMP-92A-D | LMP-142A-D | LMP-192A-D | |
|---|---|---|---|---|---|
| Roted voltage | 220V DC | ||||
| Input voltage | AC200/220V 50/60Hz | ||||
| Output capacity (When DC220V) | kW | 7 | 9 | 14 | 19 |
| Over shoot voltage (DC) | V | - | |||
| Over excite voltage (DC) | V | 270/290※ | |||
| Voltage when handling (DC) | V | 200 | |||
| Outer dimensions | mm | 750×300×930 | |||
| Gross weight | kg | 110 | |||
| Type | LMP-74A-D | LMP-94A-D | LMP-144A-D | LMP-194A-D | |
| Roted voltage | 440V DC | ||||
| Input voltage | AC400/440V 50/60Hz | ||||
| Output capacity (When DC220V) | kW | 7 | 9 | 14 | 19 |
| Over shoot voltage (DC) | V | 350 | |||
| Over excite voltage (DC) | V | 290 | |||
| Voltage when handling (DC) | V | 200 | |||
| Outer dimensions | mm | 750×300×930 | |||
| Gross weight | kg | 110 | |||
| Type | LMP-254A-D | LMP-324A-D | LMP-454A-D | LMP-634A-D | |
| Roted voltage | 440V DC | ||||
| Input voltage | AC400/440V 50/60Hz | ||||
| Output capacity (When DC220V) | kW | 25 | 32 | 45 | 63 |
| Over shoot voltage (DC) | V | 490 | |||
| Over excite voltage (DC) | V | 290 or 370 | |||
| Voltage when handling (DC) | V | 200 or 180 | |||
| Outer dimensions | mm | 1000×450×1250 | 1000×450 ×1450 |
||
| Gross weight | kg | 170 | 200 | ||
※About overexcite voltage when grabbing material. AC200V 50 Hz area is DC270V. AC220V 60Hz area is DC290V.
