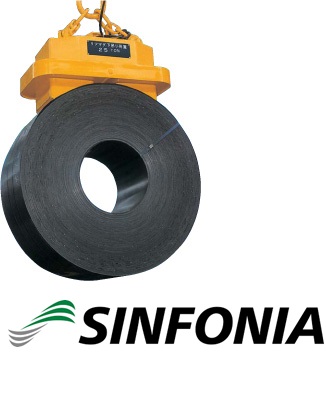

LMCL, LMMR Series
■For up-end lifting ( Tied coil high temperature, 100℃~500℃ )

Items / Type LMCL-
120120
HAS-1
LMCL-
130130
HAS-2
LMCL-
190190
HAS-1
LMMR-
265
HAS
LMMR-
285
HAS
LMMR-
285
HAS-1
LMMR-
300
HAS
Dimensions A mm 1630 2030 2500 2650 2770 2850 3020
B 1400 1400 1990 1910 2310 2130 2400
C 250 250 500 500 700 700 700
D 170 170 230 230 260 260 250
E

85

85 115 115 150 150 110×2
Weight kg 2750 5200 9600 10600 14000 15000 16000
Voltage (DC) V 220 220 220 220 220 220 220
Current
(before running)
(approx.)
A 45.5 54.5 91 148 150 158 150
Cold power
consumption
(approx.)
kW 10 12 20 32.5 33 34.7 33
Strip coil Weight ton 20 27 32 42 60 60 60
Outside
diameter.
Open/
Tight
mm 1625 1930 2340 2540 2650 2750 2830
Width mm 1900 1900 1900 1900 2080 2080 2080



Duty rating : E.D. 50%

LMMR Series
■For up-end lifting ( Both for tied and untied coil,
high temperature, 100℃~500℃ )

Items / Type LMMR-315HAS LMMR-360HAS LMMR-480HAS
Dimensions A mm 3180 3600 4800
B 1700 1900 3000
C 500 500 800
D 220 230 300
E

90

115 180
Weight kg 10300 18800 35000
Voltage (DC) V 220 220 220
Current
(before running) (approx.)
A 150 191 236
Cold power consumption
(approx.)
kW 33 42 52
Weight ton 21 32 50
Strip coil Outside
diameter
Open mm 2900 3355 4700
Tight mm 1930 2060 2650
Width mm 1600 1900 2060


Duty rating : E.D. 50%

LMDP Series
■For down-end lifting, up-end & down-end lifting

Application Both up-end down-end Down-end
Items / Type LMDP-
19090 HAS
LMDP-
220100 HAS
LMDP-
250135 HAS
LMDP-
13095 HA
LMDP-
14090 HA
LMDP-
160150 HA
Dimensions A mm 1920 2230 2500 1320 1450 1600
B 900 1050 1350 970 950 1490
C 1500 1800 2500 1500 1740 2340
D 250 250 500 250 310 500
E 170 170 230 175 230 230
F 85 85 115 50 50 115
Weight kg 4400 6600 10000 3000 3800 7500
Voltage (DC) V 220 220 220 220 220 220
Current
(before running)
(approx.)
A 70 68 91 56 59 91
Cold power
consumption
(approx.)
kW 15.4 15 20 12.4 13 20
Strip coil Weight ton 16 21 32 17 23 32
Outside
diameter
mm 1700 2000 2160 1650 2000 2200
Width mm 1220 1320 1900 1320 1530 1900
Temperature High Nomal

Model LMCS: For slab transportation.
Model LME: For both slab transportation and turning.

Notice Please provide the following information on your coil when inquire for lifting magnet.


  •
