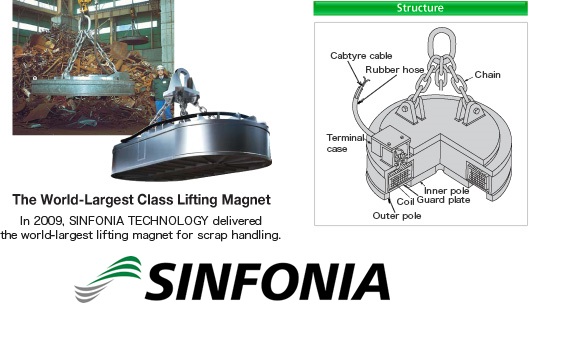

LMCK-HA-7 Industrial Electrical Equipment & Power System Sinfonia
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: ACCURATE SENSOR
Mr. HuyLMCK-HA-7 Industrial Electrical Equipment & Power System Sinfonia Vietnam ANSdanang
For normal temperature scrap handling (up to 100℃)
| Type | LMCK- 115HA-7 |
LMCK- 135HA-7 |
LMCK- 155HA-7 |
LMCK- 175HA-7 |
LMCK- 185HA-7 |
LMCK- 215HA-7 |
Rated voltage |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Outline Dimention | Figure B | ||||||||||
| Dimensions | A | mm | 1150 | 1350 | 1550 | 1750 | 1850 | 2150 | |||
| B | 1150 | 1350 | 1550 | 1750 | 1850 | 2150 | |||||
| C | 435 | 455 | 455 | 511 | 527 | 544 | |||||
| D | 1069 | 1231 | 1290 | 1447 | 1463 | 1792 | |||||
| E | 38 | 50 | 50 | 60 | 60 | 80 | |||||
| F | 200 | 250 | 250 | 350 | 350 | 400 | |||||
| G | 125 | 175 | 175 | 210 | 210 | 250 | |||||
| Weight (approx.) With hanging chain | kg | 1500 | 2350 | 3050 | 4150 | 4950 | 7200 | ||||
| Current (when cold) | A | 30.9 | 43.6 | 54.1 | 52.3 | 62.7 | 92.3 | Rated voltage when DC220V |
|||
| Power consumption (when cold) | kW | 6.8 | 9.6 | 11.9 | 11.5 | 13.8 | 20.3 | ||||
| Lifting capacity (cold/hot) |
When E.D. 50% |
Pig iron | kg | 1030/940 | 1640/1530 | 2160/1980 | 2750/2550 | 3080/2880 | 4160/3820 | Over shoot when starting up DC350V or 490V Over excite while lifting DC290V While handling DC200V |
|
| No. 1 H.M.S. | 545/490 | 870 /785 | 1220/1105 | 1590/1430 | 2140/1840 | 2890/2450 | |||||
| No. 2 H.M.S. | 250/180 | 350/300 | 500/400 | 650/550 | 750/600 | 1300/1000 | |||||
| When E.D. 75% |
Pig iron | 1030/870 | 1640/1430 | 2160/1880 | 2750/2400 | 3080/2680 | 4160/3620 | ||||
| No. 1 H.M.S. | 545/460 | 870/735 | 1220/1055 | 1590/1360 | 2140/1740 | 2890/2350 | |||||
| No. 2 H.M.S. | 250/160 | 350/270 | 500/360 | 650/500 | 750/550 | 1300/900 | |||||
| Components | Control method | Over excite | Over excite with over shoot |
AC200/ 220V When receiving power |
|||||||
| Cable connector | PJW-102 | PJW-202 | |||||||||
| Cable drum (For 15m) | U5-C1502G1 | U5-E1502G2 | |||||||||
| Attached cabtire cable | 14mm2, 2 hearts 20m×1 | 22mm2, 2hearts 20m×1 |
|||||||||
| Power panel | LMP-72A-D | LMP-192A-D | LMP-194A-D | LMP-254A-D | |||||||
| Power receiving box | NFI-05SW | NFI-1SW | NFI-2SW | NFI-4SW | |||||||
| Inverter | 10kVA | 19kVA | 45kVA | 60kVA | |||||||
| Instrument casing | MPB- 211-5C |
MPB-211-15C | MPBS-2111-15D | MPBS- 2111-20G |
|||||||
| When using controller | MCS-2 | ||||||||||
| When using two-points push button |
KGN2112NY | ||||||||||
| When using eight-points push button |
COB-74 | ||||||||||
No.1 H.M.S: Grinding dust of thick blooms (Thickness:over 6mm, width:less than 600mm, length:less than 1500mm)
No.2 H.M.S: Dust（thickness:over 3mm, wideth: less than 450mm, length: less than 900mm）include steel plate, shaped steel and car scrap.
Note)
- Ability might differ when you use LMP-192-D in area of 50Hz, hanging voltage will be DC270V.
- Hanging capacity increase 10% when starting up over shoot DC350V or 490V, and hanging over excitation DC290V (DC200V while lifting).
- Measurement C of LMCK-175～245HA-6 is included measurement of protector.
- Type of cab tire cable is 2PNCT (5.5mm2), and PNCT for lifting magnet (14～38mm2).
- Hanging capacity might change depend on shape, dimensions, and state of compile of handling scrap. Therefore, hanging capacity is not reference.
