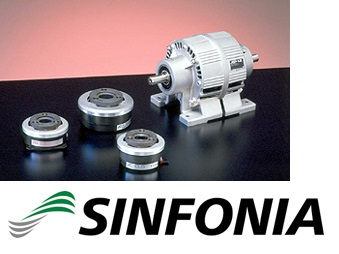

<JEP-10>
Type JEP-10
Clutch Brake
Built-In clutch/brake JCC-10F JB-10
Static friction torque Nm 100
Rated voltage DC-V 24
Power consumption W(at75℃) 33 31
Weight kg 29
(Note) The specification of built in clutch/brake is dedicated to JEP.
Unit:mm





Diameter direction
A 234
B 95
C 120
D 234
E 60
F 127
G 20
H 237
Shaft direction
L 430
M 260
N 110
O 70
P 215
R 152.5
Z 14
Shaft edge
Q 60
QK 46
d 30
b 10
h 8
t

5

Power box
DMP-63/24A
High frequency
controller
EMP-70DB
CSM-55DB
CMPH-250/4HB
