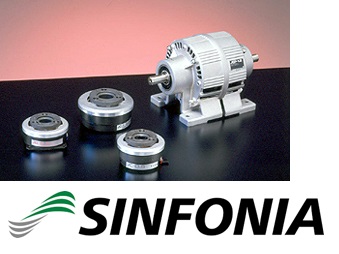

JEP-2.5 Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

JEP-2.5 Brake Sinfonia Vietnam ANSdanang

<JEP-2.5>
Type JEP-2.5
Clutch Brake
Built-In clutch/brake JCC-2.5F JB-2.5
Static friction torque Nm 25
Rated voltage DC-V 24
Power consumption W(at75℃) 16 14
Weight kg 8.4
(Note) The specification of built in clutch/brake is dedicated to JEP.
Unit:mm





Diameter direction
A 154
B 60
C 90
D 154
E 40
F 89
G 13
H 167
Shaft direction
L 295
M 190
N 80
O 50
P 147.5
R 106
Z 10
Shaft edge
Q 40
QK 34
d 20
b 6
h 6
t

3.5
Power box
DMP-20/24A
High frequency
controller
EMP-20DB
CSM-55DB
CMPH-100/4HA
