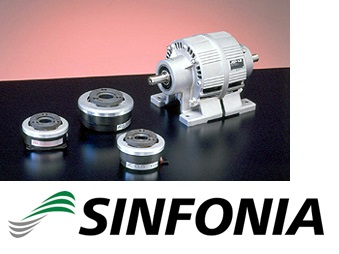

JEM-2A Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

JEM-2A Brake Sinfonia Vietnam ANSdanang

[Stand type]<JEM-2A>
Type JEM-2A
Clutch Brake
Clutch/Brake Built-in clutch/brake JCC-5F JB-5
Static friction torque Nm 50
Rated voltage DC-V 24
Power consumption W(at75℃) 23 20
Motor Capacity kW 1.5
Voltage, Frequency,
Number of poles		 AC200/200,220V,50Hz/60Hz,4P
Weight kg 39
(Note) The specification of built in clutch/brake is dedicated to JEM.
Unit:mm





Diameter direction
A 190
B 80
C 112
D1 190
D2 187
E 60
F 144
G 15
H 207
I 205.5
Shaft direction
L 504
M 200
N 80
O 60
P1 328
P2 176
R 123.5
Z 12
Shaft edge
Q 50
QK 42
d 25
b 8
h 7
t

4
Power box
DMP-20/24A
High frequency
controller
EMP-20DB
CSM-55DB
CMPH-100/4HA
