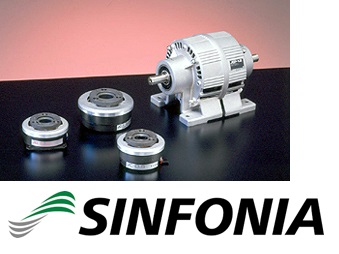

JEM-1A Brake Sinfonia Vietnam ANSdanang

[Stand type]<JEM-1A>
Type JEM-1A
Clutch Brake
Clutch/Brake Built-in clutch/brake JCC-2.5F JB-2.5
Static friction torque Nm 25
Rated voltage DC-V 24
Power consumption W(at75℃) 16 14
Motor Capacity kW 0.75
Voltage, Frequency,
Number of poles		 AC200/200,220V,50Hz/60Hz,4P
Weight kg 27
(Note) The specification of built in clutch/brake is dedicated to JEM.
Unit:mm





Diameter direction
A 170
B 70
C 90
D1 152
D2 162
E 45
F 128
G 13
H 167.5
I 171
Shaft direction
L 428
M 170
N 70
O 55
P1 284.5
P2 143.5
R 102
Z 10
Shaft edge
Q 40
QK 34
d 20
b 6
h 6
t

3.5
Power box
DMP-20/24A
High frequency
controller
EMP-20DB
CSM-55DB
CMPH-100/4HA
