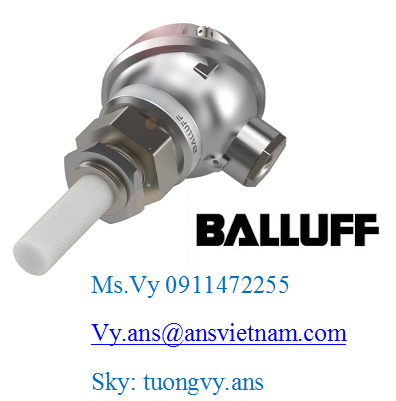

Capacitive sensors with special properties
Nhà cung cấp: Anh Nghi Sơn
Hãng sản xuất: BALLUFF VIET NAM
Mr. Huy|
|
Variants
 |
Order Code
|
Dimension
|
Connection type
|
Interface
|
Range
|
Installation
|
Housing material
|
|---|---|---|---|---|---|---|---|---|
 |
BCS F01CP01-XXS10C-EP02-GZ01-002 | BCS000Y | 90 x 16 x 4 mm | Cable with connector | Special interface | 2...10 mm | for flush mounting | PC; PUR |
 |
BCS G34KN2-UST20G-AV02 | BCS0007 | Ø 34 x 99 mm | Cable | 0...16.2 mm | non-flush | PBT | |
 |
BCS M18KM3-UOT80G-BV02 | BCS000J | Ø 18 x 84 mm | Cable | 0...6.5 mm | non-flush | PBT | |
|
BCS M18KM3-UST80G-BV02 | BCS000K | Ø 18 x 84 mm | Cable | 0...6.5 mm | non-flush | PBT | |
 |
BCS M18T4H1-XXS10H-SZ02-T08 | BCS00A1 | Connector | 1...10 mm | non-flush | 1.4301 | ||
 |
BCS M30KN2-UOT15G-AV02 | BCS000U | Ø 30 x 99 mm | Cable | 0...12.1 mm | non-flush | PBT | |
|
BCS M30KN2-UST15G-AV02 | BCS000W | Ø 30 x 99 mm | Cable | 0...12.1 mm | non-flush | PBT | |
 |
BCS M30T4G1-XXS20H-SZ02-T08 | BCS00A2 | Connector | 1...20 mm | non-flush | 1.4301 | ||
 |
BCS M30T4M3-GPCFVG-S04G | BCS00HJ | Connector | PNP/NPN | non-flush | 1.4301 | ||
 |
BCS M30TTH2-GPCFVG-AT02 | BCS00TZ | Cable | PNP/NPN | non-flush | PTFE | ||
 |
BCS S01T401-NOCFNG-KM16-T02 | BCS006L | 54.8 x 48.5 x 106 mm | Clamping terminal | NPN | non-flush | 1.4305 | |
|
BCS S01T401-NSCFNG-KM16-T02 | BCS006K | 54.8 x 48.5 x 106 mm | Clamping terminal | NPN | non-flush | 1.4305 | |
|
BCS S01T401-POCFNG-KM16-T02 | BCS006J | 54.8 x 48.5 x 106 mm | Clamping terminal | PNP | non-flush | 1.4305 | |
|
BCS S01T401-PSCFNG-KM16-T02 | BCS006H | 54.8 x 48.5 x 106 mm | Clamping terminal | PNP | non-flush | 1.4305 | |
 |
BCS S02T401-NOCFNG-KM16-T02 | BCS006R | 54.8 x 48.5 x 106 mm | Clamping terminal | NPN | non-flush | 1.4305 | |
|
BCS S02T401-NSCFNG-KM16-T02 | BCS006P | 54.8 x 48.5 x 106 mm | Clamping terminal | NPN | non-flush | 1.4305 | |
|
BCS S02T401-POCFNG-KM16-T02 | BCS006N | 54.8 x 48.5 x 106 mm | Clamping terminal | PNP | non-flush | 1.4305 | |
|
BCS S02T401-PSCFNG-KM16-T02 | BCS006M | 54.8 x 48.5 x 106 mm | Clamping terminal | PNP | non-flush | 1.4305 | |
 |
BCS S03T401-NOCFNH-KM16-T02 | BCS00A9 | 54.8 x 48.5 x 106 mm | Clamping terminal | NPN | non-flush | 1.4305 | |
|
BCS S03T401-NSCFNH-KM16-T02 | BCS00A8 | 54.8 x 48.5 x 106 mm | Clamping terminal | NPN | non-flush | 1.4305 | |
|
BCS S03T401-POCFNH-KM16-T02 | BCS00A7 | 54.8 x 48.5 x 106 mm | Clamping terminal | PNP | non-flush | 1.4305 | |
|
BCS S03T401-PSCFNH-KM16-T02 | BCS00A6 | 54.8 x 48.5 x 106 mm | Clamping terminal | PNP | non-flush | 1.4305 | |
 |
BCS S10T401-XXSFNC-SZ02-T07 | BCS00A3 | Connector | non-flush | 1.4301 | |||
 |
BCS S10T402-XXSFNC-SZ02-T07 | BCS00A4 | Connector | non-flush | 1.4301 | |||
 |
BCS S10T403-XXSFNC-SZ02-T07 | BCS00A5 | Connector | non-flush | 1.4301 |
