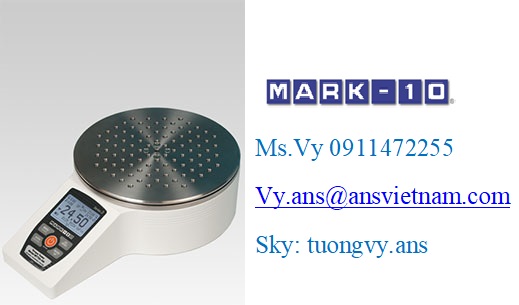

  • Stainless steel loading plate with #10-32 threaded holes accommodates fixtures and attachments
  • Threaded holes are not drilled through the plate, for protection from debris and liquid
  • USB, RS-232, Mitutoyo, and analog outputs
  • Automatic output, data storage, and zeroing upon sample break helps automate testing processes
  • First / second peak detection for torque tool testing, bottle cap testing, and other applications
  • 1,000-point data memory with statistics and outputs
  • Password protection prevents unauthorized changes
  • Programmable set point indicators and outputs for pass/ fail determination
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • Configurable audio alarms and key tones
  • 5 selectable units of measurement
  • MESUR™ Lite data collection software included



Accuracy:  ±0.3% of full scale
Sampling rate:    7,000 Hz
Power:   AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery life:   Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units:   ozFin, lbFin, kgFcm, Nm, Ncm
Output:   USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe overload:   150% of full scale (display shows “OVER” at 110% and above)
Weight:   10.9 lb [4.9 kg]
Included items:   Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user’s guide), and NIST-traceable certificate of calibration (data is available for an additional charge).
Warranty:   3 years (see individual statement for further details)
