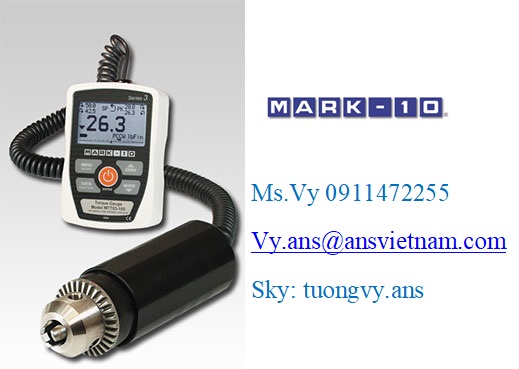

Digital Torque Gauges Series TT03

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: MARK-10 VIET NAM

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

  • Ergonomic torque sensor with Jacobs chuck
  • Peak torque values saved and displayed
  • High-speed 2,000 Hz sampling rate
  • USB data output of continuous or individual data points
  • Programmable set points with pass/fail indicators
  • Live load bar graphs with set point markers
  • Peak memory for clockwise and counter clockwise readings
  • Set points always displayed
  • Configurable audio alarms and key tones
  • MESUR™ Lite data collection software included
  • Battery or AC operation
  • Safe overload: 150% of capacity
  • CE mark



Accuracy:  ±0.5% of full scale
Sampling rate:    2,000 Hz
Power:   AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life:   Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units:   lbFin, ozFin, kgFmm, Ncm (depending on model)
USB Output:   Configurable to 115,200 baud
Safe overload:   150% of full scale (display shows “OVER” at 110% and above)
Weight:   1.8 lb [0.8 kg]
Included items:   Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge).
Environmental requirements:   40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty:   3 years (see individual statement for further details)
