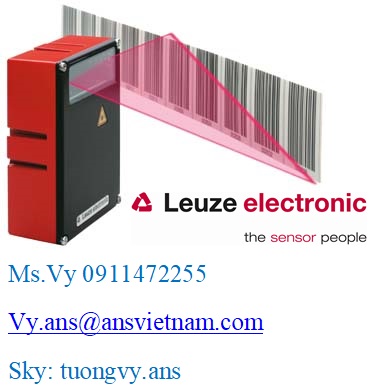

- SeriesBPS 30
-
Functions
- FunctionsExtended temperature range
-
Optical data
- Depth of field90 ... 170 mm
- Light sourceLaser, Red
- Laser class2, IEC/EN 60825-1:2007
- Light beam exitLateral at angle less than 100°
-
Measurement data
- Measurement range0 ... 10,000,000 mm
- Reproducibility (1 sigma)1 mm
- Measurement value output2 ms
- Max. traverse rate10 m/s
-
Electrical data
-
Performance data
- Supply voltage10 ... 30 V, DC
- Current consumption, max.500 mA
-
Inputs
- Number of digital switching inputs1 Piece(s)
-
Outputs
- Number of digital switching outputs1 Piece(s)
-
-
Interface
- TypeSSI
-
SSI
- FunctionProcess
-
Service interface
- TypeRS 232
-
RS 232
- FunctionConfiguration via software, Service
-
Connection
-
Connection 1
- Type of connectionSub-D
- FunctionConnection to device
-
-
Mechanical data
- Dimension (W x H x L)90 mm x 120 mm x 43 mm
- Housing materialMetal, Diecast aluminum
- Lens cover materialGlass
- Net weight400 g
- Type of fasteningMounting thread, Dovetail grooves, Via optional mounting device
-
Environmental data
- Ambient temperature, operation0 ... 50 °C
- Ambient temperature, storage-30 ... 60 °C
- Relative humidity (non-condensing)0 ... 90 %
-
Certifications
- Degree of protectionIP 65, EN 60529 with various connectors or screwed-on caps
- Protection classIII
- Certificationsc UL US
-
Classification
- Customs tariff number84719000
- eCl@ss 8.027280190
- eCl@ss 9.027280190
