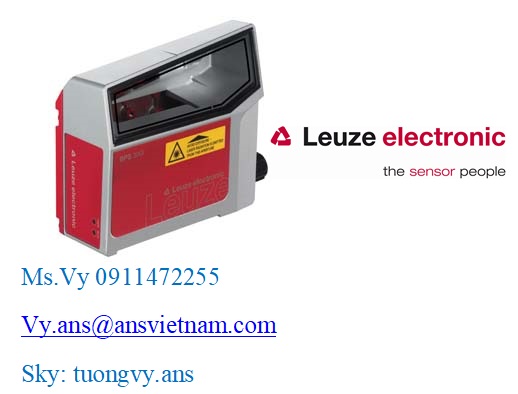

- SeriesBPS 300i
-
Functions
- FunctionsHeating
-
Optical data
- Depth of field50 ... 170 mm
- Light sourceLaser, Red
- Laser class2, IEC/EN 60825-1:2007
- Light beam exitLateral
-
Measurement data
- Measurement range0 ... 10,000,000 mm
- Reproducibility (1 sigma)0.15 mm
- Measurement value output2 ms
- Max. traverse rate10 m/s
-
Electrical data
-
Performance data
- Supply voltage18 ... 30 V, DC
- Power consumption, max.17.7 W
-
Inputs/outputs selectable
- Number of inputs/outputs selectable2 Piece(s)
-
-
Interface
- TypePROFINET
-
Service interface
- TypeUSB
-
USB
- FunctionService, Configuration via GSDML modules
-
Mechanical data
- Dimension (W x H x L)100 mm x 108.7 mm x 48.3 mm
- Housing materialMetal, Diecast aluminum
- Lens cover materialGlass
- Net weight580 g
- Type of fasteningDovetail grooves, Via optional mounting device, Fastening on back
-
Operation and display
- Type of displayLED
-
Environmental data
- Ambient temperature, operation-35 ... 50 °C
- Ambient temperature, storage-35 ... 70 °C
- Relative humidity (non-condensing)90 %
-
Certifications
- Degree of protectionIP 65, EN 60529 with various connectors or screwed-on caps
- Protection classIII
- Certificationsc UL US
-
Classification
- Customs tariff number84719000
- eCl@ss 8.027280190
- eCl@ss 9.027280190
-
