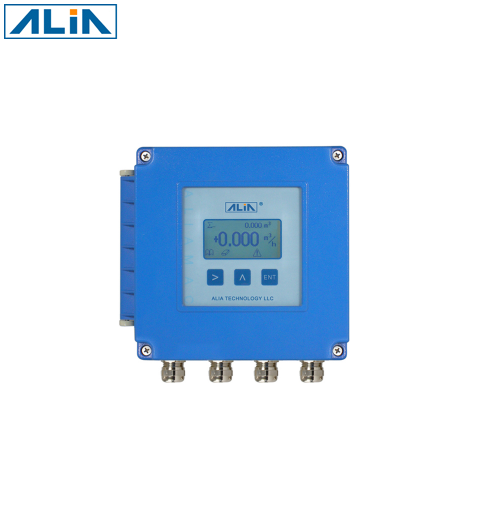

Model: AMC2100-AC-SW-NN-NN/ Converter (Bộ hiển thị lưu lượng)/ ALIA

Excitation:

Keypad:

DC pulsed

3 External keys for programming

Display:

and display control

3 Lines LCD with illumination

Data Storage:

Line 1

Operation parameters and totalizer

11 Digit totalizer for forward flow

figures are stored by EEPROM for more

11 Digit totalizer for reverse flow

than 10 years

11 Digit totalizer for difference

Low Flow Cutoff:

Line 2

0-9.9%

5 Digit flowrate / velocity / % / mA / Hz

Damping:

Line 3

0-99 Seconds

Parameter / Query / Clr tot / Query LOG

Density Setting:

Alarm, Guidance

0.1-9.99 g/cm3

Totalizer Unit

Self Diagnosis:

T, kg, g, lb, Ston, Lton, m3, L, mL, lgal, gal,

The following error message are

mgal, bbl, fr3, a-ft

displayed if failure occurs

Time Unit

- Coil failure

sec, min, hour, day

- Power failure

Measuring Range:

- Overranged output

Min. 0-0.15 m/s

- Internal error

Max. 0-15 m/s

- Overflow

Accuracy:

- Empty pipe

+/-0.4% of reading (Velocity>=0.5 m/s)

Cable Entry:

+/-0.002 m/s (Velocity<0.5 m/s)

Standard: PG11 Option: 1/2"NPTF

Repeatability:

Protection Class:

+/-0.1% of reading

IP65

Current Output:

Ambient Temperature:

4-20 mA (Isolated)

-25~65 oC

Load

Material:

Max. 600

Aluminum Alloy

Pulse Output:

Power Supply:

Open collector

90-260 VAC, 50/60 Hz

Rating

24 VDC +/-10% (Option)

3-30 VDC, 20 mA Max.

Power Consumption:

Pulse Rate:

3-17 W (Dependent on sensor size)

1)Scale pulse (mL/Pusle, L/Pulse, Other)

Weight:

2)Frequency: 0-5000 Hz

1.4 kg

Pulse Width:

Mounting:

50% of band width

Wall mounting

Alarm:

Bracket on 2" pipe

High / Low with open collector output



Rating



3-30 VDC, 20 mA Max.



Communication:



RS485 (MODBUS Protocol)



HART signal (Compatible)
