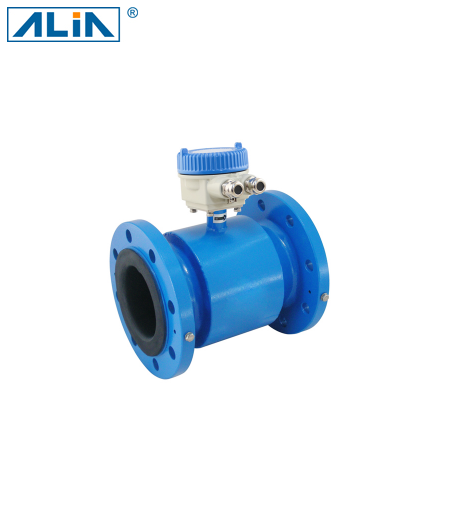

Cảm biến lưu lượng điện từ (Electromagnetic Flowmeter) - ALIA

Model: AMF900-N1800-S2A99-020-N

Specifications:

Size: Electrode & Grounding:
10A,10,15,20, 25,32,40,50,65,80,100,125 Stainless Steel 316L
150,200,250,300,350,400,450,500,600 Hastelloy B
700,800,900,1000,1200,1400,1600 Hastelloy C
1800,2000 mm Titanium
Measuring Range: Tantalum
Velocity   0 - 0.25 m/s min. Platinum
                0 - 12  m/s max. Tungsten Carbide
Material: Grounding Electrode:
Measuring Tube DN10A/10: use Grounding Ring *1pc
Stainless Steel 304 DN15-2000: 3 Electrodes
Flange Process Connection:
Carbon Steel (Standard) Flange
Stainless Steel 304 (Option) Flange Type:
Stainless Steel 316, 316L (Option) JIS 10K / JIS 20K / JIS 40K
Coil Housing ANSI 150# / ANSI 300# / ANSI 600#
Carbon Steel (Standard) DIN PN 10 / PN 16 / PN25 / PN 40
Stainless Steel 304 (Option) Grounding Resistance:
Stainless Steel 316,316L (Option) Must be  less than 10
Liner: Accuracy:
Polyurethane (25-400 mm) +/-0.4% of reading (Velocity >=0.5 m/s)
Neoprene (100-2000 mm) +/-0.0025 m/s (Velocity < 0.5 m/s)
FEP (10A-300 mm) +/-0.2% of reading
PTFE (10A-2000 mm) (Suitable for AMC3200/3200E converter )
PFA (10A-300 mm) Temperature:
Protection Class: -10 ~ +60 oC(Polyurethane, PU)
Junction box IP67, Body IP68 -20 ~ +70 oC(Neoprene)
IP 68 (Submersible) -40 ~ +120 oC(PTFE 3/8"to 10")
Conductivity: -40~+140 oC(PTFE 3/8"to6", FEP 3/8"to12")
More than 5 uS/cm -40~+180 oC(PTFE 3/8"to3", PFA3/8"to12")
Explosion Proof: Ambient Temperature:
Exd(ib)ibqIIBT5  -25 to +60 oC
(with AMC3200 only) Max. Pressure:
Cable Entry: 350 Kg/cm2
Standard :PG11  Option:1/2"NPTF
