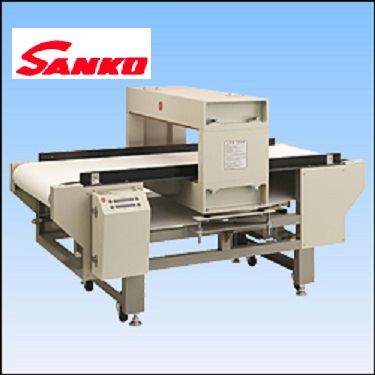

Features

●

Because any metals regardless of bonferrous can be detected,detecting objects shoud not equip with metallic-made accessories.

●

Strayed needles,snapping needles,other metallic pieces in sewing garment,etc.can be effectively,automatically detected on Conveyer.

●

Bulky articles like thick products,etc.in the detecting part of the tunnel shape type can be detected with almost the same quality in sensitivity as others.
･Note:measuring objects should not equip with metallic parts,accessories inside.

Applications

●

Sewing Products like knitwear,fabric,blankets.

●

Clothing products like shoulder pat,hat,towel,stuffy animals.

Specifications

Model

SV-602

SV-752

SV-1502

SV-2002

Detecting method

Electromagnetic induction

Detection ability

Steel ball φ1.2
(equivalent to the size of the tip of a needle eye of industrial sewing machine needle)
Stainless φ3.0

Steel ball φ1.2
(corresponding to a snapping needle)
Stainless φ3.0

Passing width

600mm

750mm

1500mm (belts: 6pcs)

2000mm (belts: 8pcs)

Passing height

230mm standard (with guide: passing height220mm)

170mm standard (with guide: passing height150mm)

Alarm

Buzzer, lamp, belt stop

Belt speed

25m/min. (50Hz), 30m/min (60HZ)

Power source

AC100V 50/60Hz
about 400W

AC200V, 3 phase 50/60Hz about 600W
