Model WCF-2A WCF-3
Cover No cover No cover
Trough weight(kg) 2.0〜4.5 3.0〜9.0
Standard trough size(mm) 120×550×60 150×610×70
Max stroke(mm) 1.6 1.6
Vibration frequency(Hz) 50〜70 50〜70
Applicable controller C10-1VCF  C10-3VF
Voltage(V) 200  200
Current(A) 0.65 1.6
Weight(Drive unit only)(kg) 17 28
Auxiliary cable
(cross-section area)
VCT、1.5m
(0.75mm2×3core)
2PNCT、1.5m
(1.25mm2×3core)
※C10-TR power transformer unit is required when power source is AC100V

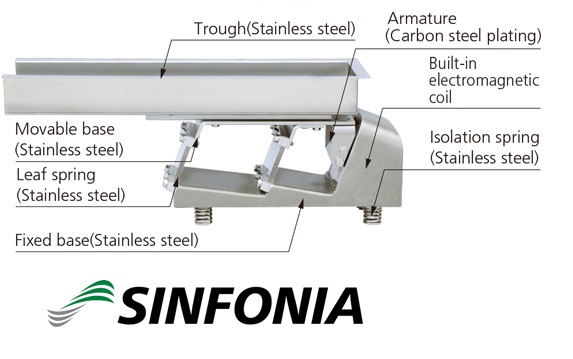

■Structural diagram
Structure Diagram
■Dimensions
