* Mô tả:
  • Set the measurement to be entered.
  • Optionally set measurement within the measurable range.
  • The measured value will be output in pulse count of DC 4-20 mA.
  • Each move and state are processed by an one-chip microcomputer built into a controller, and abnormalities such as disconnected wires or immersed weight are promptly reported by a signal or display on LEDs.

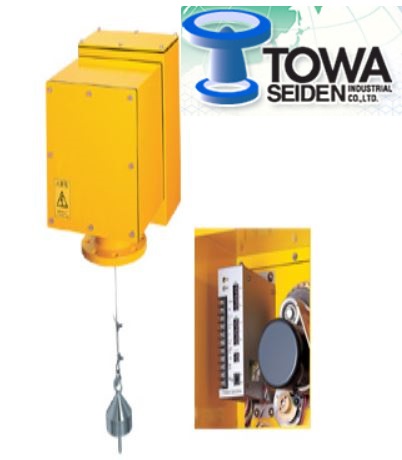

Model TLX-120AP1 TLX-200AP
Measuring range 0-12m 0-20m
Measurement Pulse
Measuring yardstick Wire rope 2 mmΦ, SUS304
Motor Single phase 20 W reversible (50/60 Hz)
Simple brake
Single phase 20W reversible (50/60 Hz)
Electromagnetic brake
Output Current output DC 4-20 mA, load resistance: 350 W or less
Pulse output
Start output
NPN open collector output
Maximum 40 mA (30 V or less), residual voltage: 1 V or less
Output while measuring a contact, AC 250 V/5 A, DC 30 V /5 A (resistance load)
Abnormal output a contact, AC 250 V/5 A, DC 30 V /5 A (resistance load)
Input Nonvoltage contact signal (start input)
Measurement resolution 10cm
Accuracy 10cm 1% of F.S.
Indicator lamp Power (yellow), operation (displayed on 2-color LED, green: measurement in progress, red: abnormal)
Weight up/down speed Approximately 12 m/min Approximately 13 m/min
Timer function 3 min, 5 min, 10 min, 15 min, 20 min, 30 min, 60 min, 2 hrs, and 3 hrs
(3 min not selectable on TLX-200AP)
Power voltage 100 V AC or 200 V AC, 50/60 Hz
Power consumption 70VA
Flange size 5K100A (SS400)
Use ambient temperature -10-50oC(free from freezing)
Major material Body and flange: SS400, cover: SS400, wire: SUS304
Coating color Munsell 10YR 7.5 / 14 (yellow)
