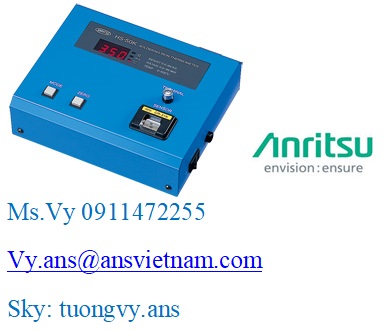

Model HS-30K HS-50K
Display LCD LED
Input type Temperature
(Thermocouple : Type K)
Temperature (Thermocouple : Type K)
Resistance (between the iron ahead ground)
leak electric voltage
Measurement range 0 to 500°C Temperature : 0 to 500°C
Resistance (between the iron ahead ground) : 0.0 to 99.9 Ω
leak electric voltage : 0.0 to 99.9mV (RMS)
Resolution 1°C Temperature : 1°C
Resistance (between the iron ahead ground) : 0.1 Ω
leak electric voltage : 0.1mV
Measurement accuracy ± (0.3% of reading + 1)°C Temperature : ± (0.3% of reading + 1)°C
Resistance (between the iron ahead ground) : ± (4% of reading 0.3)Ω
leak electric voltage : ± (3% of reading +0.3)mV
Reference junction
compensation accuracy
±0.5°C (at 23°C±10°C) ±0.2°C (at 23°C±10°C)
Temperature coefficient ± (0.03%/°C) of measurement
range except 23°C±10°C
± (0.01%/°C) of measurement
range except 25°C±10°C
Environmental limit Operation 10 to 40°C,0 to 85%RH (without dew) 10 to 40°C,0 to 85%RH (without dew)
Storage 0 to 50°C,0 to 85%RH (without dew) -20 to 40°C,0 to 85%RH (without dew)
Linearlizer Analog linearlizer method
(Compliant with IEC 60584-1(2013))
Digital linearlizer method
(Compliant with IEC 60584-1(2013))
Power supply 4"AA"(LR6) Alkali Batteries AC 100V to 240V
Battery Life approx. 180h
Dimensions 152(W)×45(H)×50(D) mm 180(W)×55(H)×150(D) mm
Weight approx. 460g approx. 950g
Accessories Manual, 4 Batteries, Test report Manual, Spare fuse, Power supply cord, Ground cord, Test report
