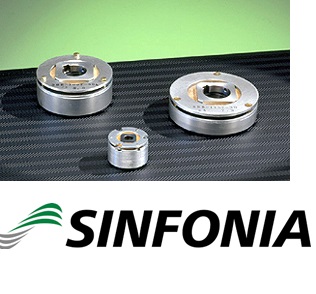

SBM-90-04 Brake Sinfonia Vietnam ANSdanang

<SBM-90-04>
Type SBM-90-04
Static friction torque Nm 4
Rated voltage DC-V AC200/220V
Power consumption W(at75°C) 16
Weight kg 1.5
Unit:mm





Diameter direction
A 90
C 27
D1 90
Shaft direction
L 47
M 26
P 32
Q 10
Mounting
P.C.D 80
S 11
Z 5.5
Shaft hole
d 14
b -
t -
