Programmable logic controller - interface module

Xuất sứ: Israel

Nhà cung cấp: ANS Việt Nam

Hãng sản xuất: UNITRONICS VIET NAM

Liên hệ tư vấn

Hotline

support@ansgroup.asia

0911472255

anhnghisonhcm

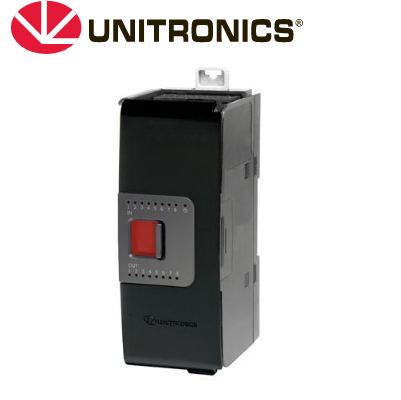

Bộ điều khiển lập trình  UIA-0402N  Unitronics

Specifications

Primary brand:
Unitronics
Main function
I/O unit
Product series / family name
UniStream series
Sub-range name
Uni-I/O
Functions
Analog mixed current / voltage input / output slice module
Supply voltage (DC)
20.4Vdc-28.8Vdc (24Vdc nom.)
Display
LED indicator
Net Height (mm)
65 mm
Net Width (mm)
135 mm
Net Depth (mm)
44.2 mm
Mounting mode
DIN rail mounting
Analog inputs
4 x analog inputs (0-10Vdc / 0-20mA / 4-20mA; 13-bit conversion)
Analog outputs
2 x analog outputs (0-10Vdc; 14-bit / -10...+10Vdc; 13-bit + sign / 0-20mA / 4-20mA; 13-bit conversion)
Degree of protection
IP20
NEMA 1
Ambient air temperature for operation
-20...+55 °C
Order code / Manufacturer SKU
UIA-0402N
Manufacturer product status
Commercialized
Compliant with standard(s)
IEC 60068-2-6
IEC 60068-2-27
UL
CE
EAC
