Đặt điểm

  • Interchangeable force and torque sensors through Plug & Test™ technology (sensors are sold separately)
  • Sensor password protection, for preventing use of an unauthorized sensor
  • Password protection for individual keys and calibration
  • High-speed 14,000 Hz sampling rate
  • Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
  • Individual data point memory for up to 5,000 readings, downloadable to a PC
  • USB, RS-232, Mitutoyo, and analog outputs
  • Sample break detection with auto functions, including stopping movement of a Mark-10 motorized test stand
  • Automatic output / data storage / zeroing upon various event completions
  • 1st / 2nd peak detection
  • 5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
  • Programmable footswitch command string
  • Programmable set points, with indicators and outputs
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Password protection, configurable for individual keys and calibration
Model Description

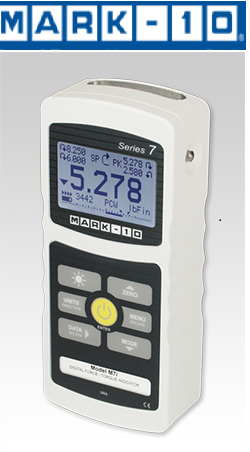

M7I Force/torque indicator, 110V
M7IE Force/torque indicator, 220V European Plug
M7IU Force/torque indicator, 220V UK Plug
M7IA Force/torque indicator, 220V Australian Plug
