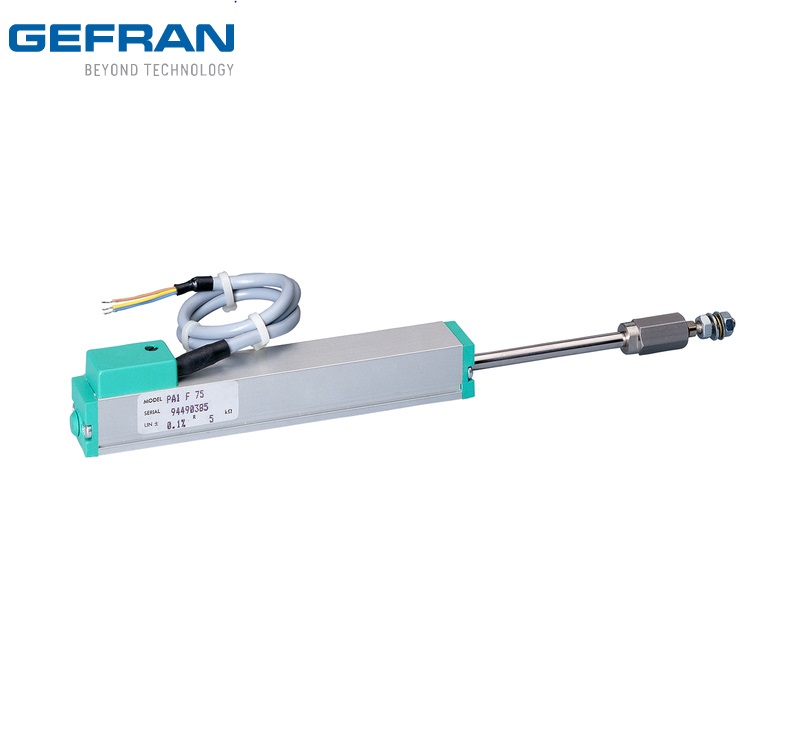

Description

  • 25 to 150 mm stroke
  • Mechanical linkage using joint with take-up of play, M4 thread
  • Independent linearity up to ± 0.05%
  • Infinite resolution
  • No variation of electrical signal outside theoretical electrical stroke
  • Displacement speed up to 5 m/s
  • Working temperature: -30...+100°C
  • Electrical connections:
    PA1 F 3 wire 1 m screened cable
    PA1 C 5 pole connector 1 m (DIN 43322)
  • Life duration: > 100x106 operations (within C.E.U.)
  • Grade of protection IP40
