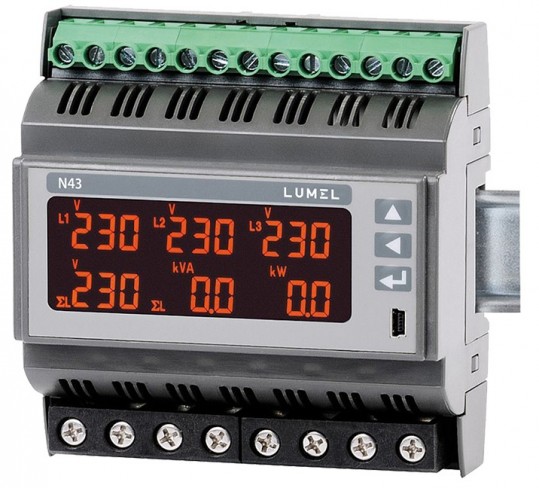

N43 Rail mounted 3-phase power network meter
Nhà cung cấp: ANH NGHI SON
Hãng sản xuất: LUMEL VIET NAM
Mr. Huy- the measurement of:
- rms values of voltage and current,
- active, reactive and apparent power,
- active, reactive energy,
- power factors,
- frequency
- THD
- indications considering values of programmed ratios,
- programmable current and voltage ratios,
- 12 programmable screens/pages,
- backlit LCD display,
- digital transmission to the master system through the RS-485 interface with Modbus protocol,
- configurable alarm outputs,
- the pulse output for monitoring of 3-phase active energy,
- analog outputs are available by connecting S4AO module,
- USB for configuration by using free eCon software,
- implemented function for software updating,
- modern design allows for installation of the meter in modular switchgear in accordance with EN 62208 (meter has a width of 6 modules) on 35 mm rail,
- external dimensions: 105 x 110 x 60mm.
