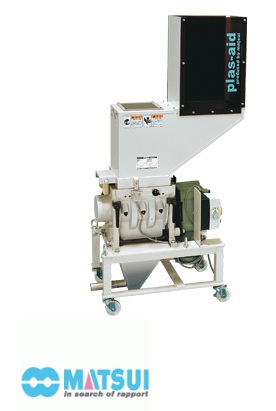

Low-Speed Granulator (Easy Cleaning Type)
MGL2
- plas-aid
- Environmentally friendly products
- Patented/ patent pending
A low speed granulator which can be cleaned safely and thoroughly in a single step. The new pivot link structure enhances the access for cleaning.
1.Enhanced Reliability
- Reducing shaft stress, double bearing eliminates difficult adjustment, extends lifespan of bearing and makes the exchange of blades and bearing easier.
- The use of anti-vibration torque arm extends the lifespan of bearing and reduction gear (by 1.5 to 2 times as compared to previous models).
2.Easy Cleaning
- Pivot design allows chamber to be widely opened (up to 200℃) without any tools.
- Round bolts that are used for the bed cutter prevent regrind materials from accumulation in the bolt head.
- Gasket-free feeding hopper prevents the removal and replacement of gasket.
3.Easy Maintenance
- Sight glass has been included as a regular feature for supervision of granulation.
- Both sides of the bed cutter, scraper and crushing bed cutter can be used.
- Dust wiper prevents the granulated materials from getting into the bearing. Air purge can also be used manually.
4.Safe and Environmental Friendly
- 3 limit switches are located at the opening and closing part of feeding hopper and insertion part of suction box.
- Motor breaker prevents excessive load.
- Sound proof steel used for feeding hopper reduces noise pollution.
