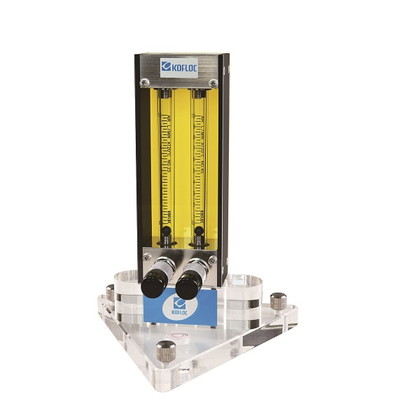

LƯU LƯỢNG KẾ _RK120XM - KOFLOC VIETNAM
Xuất sứ: JAPAN
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: KOFLOC VIET NAM
Ứng dụng sản phẩm: Automotive
Mr. Huy| Fluids | Air,N2,O2,H2,He,Ar,CO2 (Calibration with actual gas) For other gases, please consult us regarding conversion conditions or calibration with the actual gas to be used. |
|
| Flow range | From 5–50 ML/MIN to 1–10 L/MIN 10 L/MIN or less per line and 20 L/MIN or less in total (Refer to the Capacity Table on page 55.) |
|
| Accuracy | FS ±2% (Measurement point) * Optional: FS ±1% (Measurement point) |
|
| Proof pressure | 0.5MPa | |
| Available scale | 10:1 * Optional 20:1 | |
| Material | SS | BS |
| Body block | SUS316 | Brass |
| Tapered tube | Pyrex®, glass | |
| Packing | FKM * Option (1) | NBR |
| Float | Pyrex, SUS316, glass | |
| Protective cover | Acrylic resin | |
| Temperature resistance | MAX60℃ | |
| Connection | Rc 1/4 (Standard), Rc 1/8 (Optional) | |
| * Option (1): Fluorocarbon resin, Kalrez, Perfluoro, etc | ||
