Features
  • Failsafe operation
  • Setpoint ranges: 1-100 and 10-1000 rpm
  • Built-in 10-second start delay
      (Other options available, see data sheet "SCP & LRB Software Specials List")
  • DIN rail or stand-alone mounting
  • Dial-in calibration does not require power
  • ETL approved to UL 508 standard

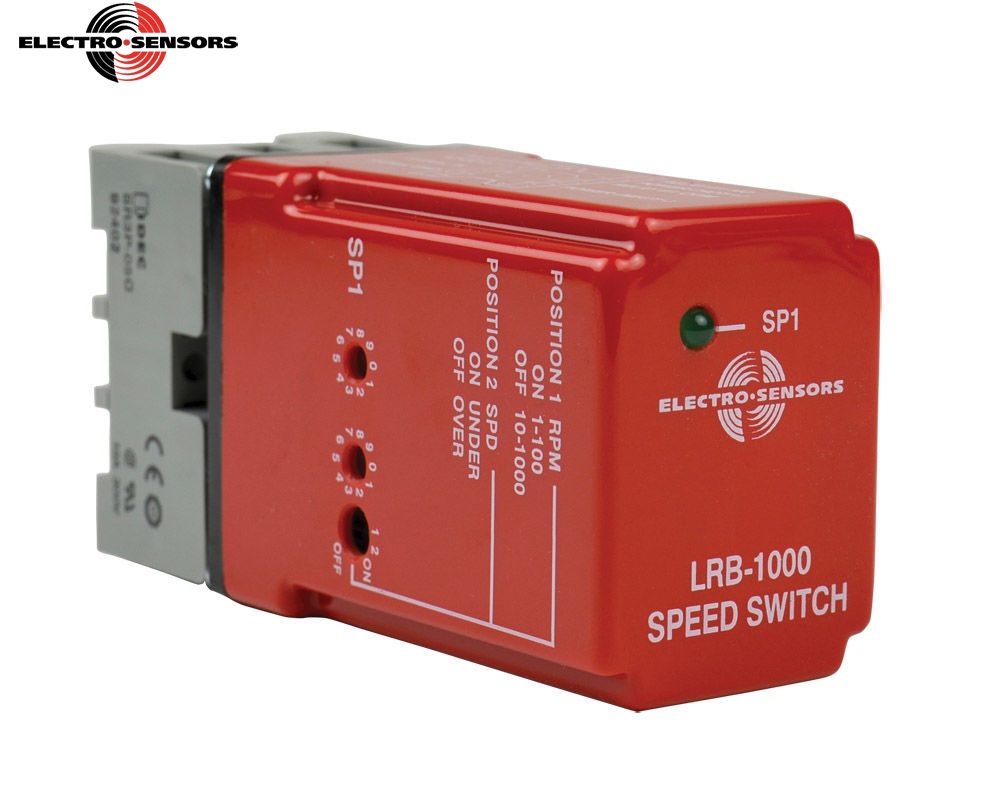

The LRB1000 (single relay, 1 setpoint) and LRB2000 (double relay, 2 setpoints) shaft speed switches are an efficient way to continuously monitor machine rpm and provide relay protection upon detection of an unwanted change in speed or stoppage of the monitored shaft. The LRB1000 and LRB2000 are completely field adjustable while the machinery is at rest; there is no need to run the shaft. They feature visual setpoint adjustment for dial-in ease and the precise digital circuitry provides high accuracy, repeatability, and reliability.
