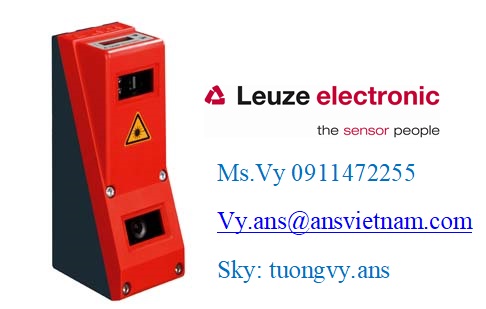

- Series36
- ContainsLxSsoft configuration software
- ApplicationContour measurement, Object measurement
-
Special design
- Special designSynchronization input
-
Optical data
- Light sourceLaser, Red
- Laser class2M, IEC/EN 60825-1:2007
-
Measurement data
- X-axis measurement range46 ... 140 mm
- Measurement range z-axis200 ... 600 mm
- Resolution of x-axis0.2 ... 0.6 mm
- Resolution of z-axis0.1 ... 0.9 mm
- Repeatability of Z-axis, relative to measurement distance0.25 %
- Measurement time10ms
- Linearity of Z-axis, relative to measurement distance0.5 %
- Black/white behavior0.5 %
-
Electrical data
-
Performance data
- Supply voltage18 ... 30 V, DC
-
Inputs
- Number of activation inputs1 Piece(s)
-
Outputs
- Number of digital switching outputs2 Piece(s)
-
Switching output 1
- Switching elementTransistor, Push-pull
-
Switching output 2
- Switching elementTransistor, Push-pull
-
-
Interface
- TypeEthernet
-
Connection
- Number of connections3 Piece(s)
-
Connection 1
- Type of connectionConnector
- FunctionSignal OUT, Voltage supply, Signal IN
- Thread sizeM12
- TypeMale
- MaterialMetal
- No. of pins8 -pin
- EncodingA-coded
-
Connection 2
- Type of connectionConnector
- FunctionConfiguration interface, Data interface
- Thread sizeM12
- TypeFemale
- MaterialMetal
- No. of pins4 -pin
- EncodingD-coded
-
Connection 3
- Type of connectionConnector
- FunctionEncoder
- Thread sizeM12
- TypeFemale
- MaterialMetal
- No. of pins8 -pin
- EncodingA-coded
-
Mechanical data
- Dimension (W x H x L)56 mm x 160 mm x 74 mm
- Housing materialPlastic, Aluminum, Metal
- Lens cover materialPlastic
- Net weight620 g
-
Environmental data
- Ambient temperature, operation-30 ... 50 °C
-
Certifications
- Degree of protectionIP 67
- Protection classIII
- Certificationsc UL US
- Standards appliedIEC 60947-5-2
-
Classification
- Customs tariff number90318020
- eCl@ss 8.027280190
- eCl@ss 9.027280190
-
