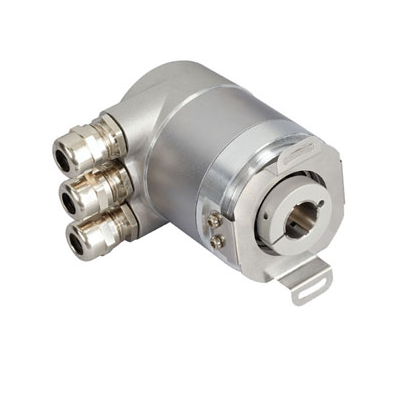

Bộ mã hóa vòng xoay tuyệt đối OCD-DPC1B-1212-B150-H3P Posital Fraba

Interface Profibus DP
Profile DPV0, DPV1 and DPV2 Class 2 (EN50170 + EN50254)
Diagnostics Memory
Manual Functions Address selector switch 0-99 and terminal resistor (with connection cap)
Features Round Axis
Transmission Rate ≤12 Mbaud
Interface Cycle Time ≥ 1 ms
Programming Functions Resolution, gearing factor (physical resolution) , velocity scaling + filter, preset (zero point), counting direction, limit switches , node number, teach-in, diagnosis
