Inductive Sensors ǀ Cảm biến cảm ứng

Xuất sứ: Germany

Nhà cung cấp: ANS Đà Nẵng

Hãng sản xuất: BALLUFF VIET NAM

Liên hệ tư vấn

Hotline

support@ansgroup.asia

0911472255

anhnghisonhcm

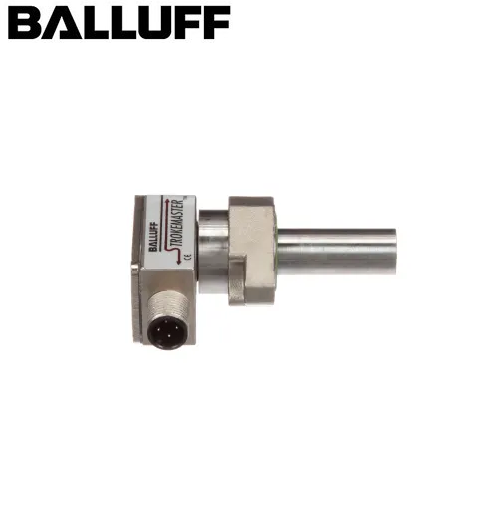

Model: BHS003M BES 516-300-S295/1.250"-S4 ǀ Inductive Sensors ǀ Cảm biến cảm ứng ǀ Balluff

Dimension: 51 x 48 x 31.75 mm

Style: D12.7

Installation: for flush mounting

Range: 2 mm

Switching output: PNP normally open (NO)

Switching frequency: 10 Hz

Housing material: Stainless steel, nickel plated<br>Zinc, Die casting

Material sensing surface: Ceramic

Connection: Connector, M12x1-Male, 4-pin

Operating voltage Ub: 10...30 VDC

Ambient temperature: -25...70 °C

Pressure rating max.: 207 bar

Magnetic field immune: magnetic field immune (AC/DC)

IP rating: IP67

Approval/Conformity: CE, cULus, EAC, WEEE
