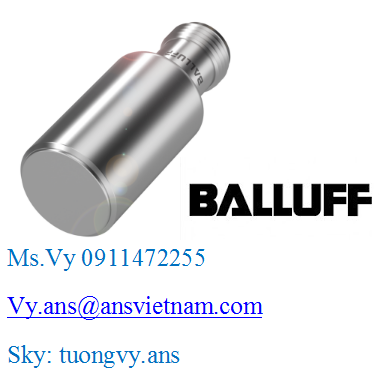

Hygienic inductive sensors

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: BALLUFF VIET NAM

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

Variants
Order Code
Dimension
Connection
Cable
Interface
Range
Housing material
BES G12EE1-PSY20B-S04G-L02 BES0430 Ø 12 x 50 mm M12x1-Male, 4-pole, A-coded   PNP 2 mm 1.4571
BES G12EE1-PSY40F-S04G-L02 BES0431 Ø 12 x 54.5 mm M12x1-Male, 4-pole, A-coded   PNP 4 mm 1.4571
BES G18EE1-PSY50B-S04G-L02 BES0439 Ø 18 x 45 mm M12x1-Male, 4-pole, A-coded   PNP 5 mm 1.4571
BES G18EE1-PSY80F-S04G-L02 BES043A Ø 18 x 54.5 mm M12x1-Male, 4-pole, A-coded   PNP 8 mm 1.4571
BES M12EE1-PSY20B-S04G-L01 BES0444 Ø 12 x 50 mm M12x1-Male, 4-pole, A-coded   PNP 2 mm 1.4571
BES M12EE1-PSY40F-S04G-L01 BES0443 Ø 12 x 54.5 mm M12x1-Male, 4-pole, A-coded   PNP 4 mm 1.4571
BES M12EE-POC40B-S04G-L01 BES0432 Ø 12 x 45 mm M12x1-Male, 4-pole, A-coded   PNP 4 mm 1.4404
BES M12EE-PSC40B-S04G-L01 BES0433 Ø 12 x 45 mm M12x1-Male, 4-pole, A-coded   PNP 4 mm 1.4404
BES M12EI-NSC40B-S04G-L01 BES0436 Ø 12 x 65 mm M12x1-Male, 4-pole, A-coded   NPN 4 mm 1.4404
BES M12EI-POC40B-S04G-L01 BES0434 Ø 12 x 65 mm M12x1-Male, 4-pole, A-coded   PNP 4 mm 1.4404
BES M12EI-PSC40B-S04G-L01 BES0435 Ø 12 x 65 mm M12x1-Male, 4-pole, A-coded   PNP 4 mm 1.4404
BES M18EE1-PSY50B-S04G-L01 BES0441 Ø 18 x 45 mm M12x1-Male, 4-pole, A-coded   PNP 5 mm 1.4571
BES M18EE1-PSY80F-S04G-L01 BES0442 Ø 18 x 54.5 mm M12x1-Male, 4-pole, A-coded   PNP 8 mm 1.4571
BES M18EI-POC80B-S04G-L01 BES0438 Ø 18 x 65 mm M12x1-Male, 4-pole, A-coded   PNP 8 mm 1.4404
BES M18EI-PSC80B-S04G-L01 BES0437 Ø 18 x 65 mm M12x1-Male, 4-pole, A-coded   PNP 8 mm 1.4404
