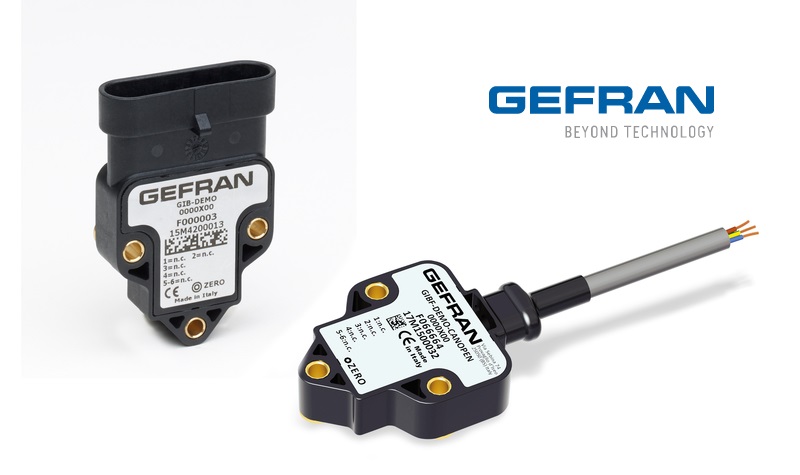

Description

Measurement range
±10° ±15° ±20° ±30° ±45° ±60° ±85° (dual axis XY)
360° (±180°) (single axis Z)
Supply voltage
+5Vdc (only for 0.5..4.5Vdc output); +10…+36Vdc (see output signal for right supply voltage)
Output signal
0.5...4.5V RATIOMETRIC (supply +5Vdc); 0.5...4.5V; 0...10V; 4...20mA; CANopen
Electrical connections
AMP Superseal 6P 282108-1; 6 wires output 18 AWG 1.65mm OD (cable+connector on request)
Resolution
0.05° (±10° to ±20°); 0.05°(±30°); 0.1°(±45°); 0.1°(±60°); 0.1°(±85°); 0.1° (±180°) analog output; 0.05° CANopen output
Linearity
< ± 0,5% FS (±10° to ±60°; ±180°); < ± 0.5% FS (±85°)
Working and coefficient temperature
-40°C ... +85°C thermal drift < 0.01°/°C in the range (T=-10°C..+60°C)
Vibrations
20g tra 10 Hz … 2000 Hz IEC 60068-2-6
Shock
Impulsive on 3 axes; 50g 11 ms IEC 60068-2-27
Electromagnetic compatibility
2014/30/EU Electromagnetic Compatibility (EMC)
IP protection level
IP67 - IPX9K with female mating connector mounted AMP282090-1 (GIB-A version) and IP68 (GIB-F version)
Housing material
PBT
