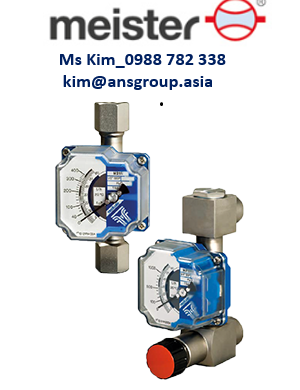

FLOWMETER FOR LIQUIDS AND GASES_Type M-21
Xuất sứ: Germany
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: MEISTER
Ứng dụng sản phẩm: Automotive
Mr. HuyThe M-21 flowmeters operate on the float measuring principle. A valve for flow regulation is available as an option.
-
-product-specific scale
-
-high accuracy
-
-small overall length
-
-low pressure drop
-
For fluids (0,007 - 17 l/min)
-
For gaseous media (0,2 - 500 Nl/min)
-
max. operating pressure: PN 16 bar (with NV) / PN 40 bar (without NV)
-
Operating temperature: from -20°C ro 200°C (optional -80°C ro 250°C)
-
