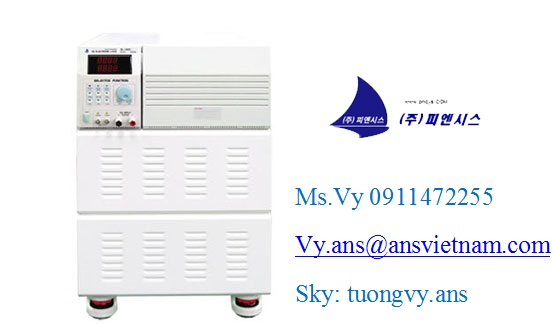

SPECIFICATION
ESLL-2.4kW
ESHH-2.4kW
OPERATING
RANGE
POWER
2.4kW
2.4kW
VOLTAGE
1~80V
5~500V
CURRENT
0~240A
0~120A
MIN. OPERATING VOLTAGE
1.0V at 40A
1.0V at 40A
MODE
CC
RANGE
0~10A/10~100A/100~240A
0~10A/10~100A/100~120A
RESOLUTION
1mA/10mA/100mA
1mA/10mA/100mA
ACCURACY
0.06%+0.2%F.S
0.06%+0.2%F.S
CV
RANGE
1~80V
5~500V
RESOLUTION
10mV
10mV
ACCURACY
0.08%+0.1%F.S
0.08%+0.1%F.S
CP
RANGE
0~10W/10~100W/100~1000W/1000~2400W
0~10W/10~100W/100~1000W/1000~2400W
RESOLUTION
10mW/100mW/1W
10mW/100mW/1W
ACCURACY
0.5%+0.5%F.S
0.5%+0.5%F.S
CR
RANGE
0.042~10Ω/10~100Ω/
0.167~10Ω/10~100Ω/
100~1000Ω/1000~8000Ω
100~1000Ω/1000~8000Ω
RESOLUTION
1mΩ/10mΩ/100m Ω/1Ω
1mΩ/10mΩ/100m Ω/1Ω
ACCURACY
0.06%+0.2%F.S
0.06%+0.2%F.S
FUNCTION
LOAD ON DELAY TIME
1ms~5000ms
1ms~5000ms
DYNAMIC
MEMORY
3CH(T1,T2,T3)
3CH(T1,T2,T3)
TIME
100㎲~1s/1~5s
100㎲~1s/1~5s
RESOLUTION
100㎲/1㎳
100㎲/1㎳
SLEW RATE
0.001~2A/㎲
0.001~2A/㎲
RESOLUTION
0.001A/㎲
0.001A/㎲
CURRENT
0~10A/10~40A
0~10A/10~40A
RESOLUTION
1mA/10mA
1mA/10mA
VOLTAGE
READ BACK
RANGE
0~10V/10~80V
0~10V/10~80V
RESOLUTION
1mV/10mV
1mV/10mV
ACCURACY
0.05%+0.1%F.S
0.05%+0.1%F.S
CURRENT
READ BACK
RANGE
0~10A/10~100A/100~240A
0~10A/10~100A/100~120A
RESOLUTION
1mA/10mA/100mA
1mA/10mA/100mA
ACCURACY
0.1%+0.1%F.S
0.1%+0.1%F.S
PROTECTION
OPP(POWER)
2496W
2496W
OVP(VOLTAGE)
81.6V
510V
OCP(CURRENT)
244.8A
122.4A
OTP(TEMPERATURE)
85℃
85℃
INPUT RESISTANCE(LOAD OFF)
80㏀
80㏀
V SENSE
0~80V
0~80V
I MONITOR
0~240A/0~10V
0~120A/0~10V
EXTERNAL MODE
0~240A/0~10V
0~1500A/0~10V
PC INTERFACE
RS-232/RS-485(Built-in)
RS-232/RS-485(Built-in)
WEIGHT (APPROX)
39 kg
39 kg
DIMENSION(WxHxD)mm
420 x 700 x 720
420 x 700 x 720
