ELECTRO-MAGNETIC /
EDDY CURRENT COATING THICKNESS METERS

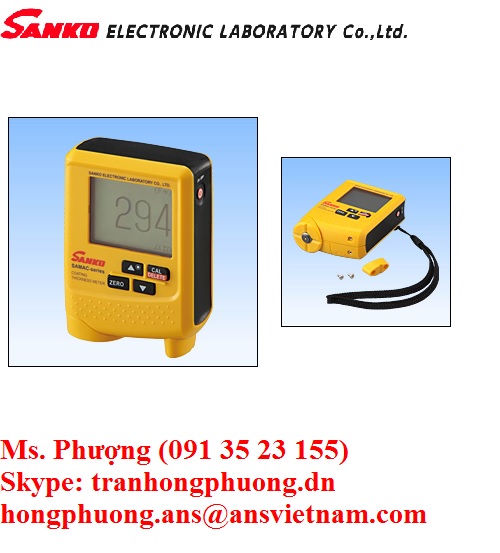

SAMAC-FN / SAMAC-Pro


　Detachable stable legs
　with strap
　SAMAC-FN 　SAMAC-Pro
Interchangeable probes. Easy measuring methods with simple key-layout
● Measurement with automatic selections of substrate metals
● Possible to measure with backlight in the dark place.
● FN-type for simple function, Pro-type for high-grade function
● With memory function of measuring values/calibration curves (Pro-type)
● With output transferring data to PC (Pro-type)
Applications
● Coating/lining/plating
● Anodic oxide coating/insulating films
Specifications
　Model SAMAC-FN SAMAC-Pro
　Method Dual ( Electromagnetic / Eddy current )
　Range 0～2.5( Fe) /2.0mm (NFe)
　Display Graphic LCD ( data , messages ) , Backup light
　Resolutions
1μｍ ： 0～999μｍ (Fe/NFe substrates)
　switching to
0．1μｍ ： 0～400μｍ (Fe/NFe substrates)
0．5μｍ ： 400～500μｍ (Fe/NFe substrates)
0．01mm ： 1．00～2．50mm (Fe substrate)
0．01mm ： 1．00～2．00mm (NFe substrate)
　Accuracies
　(perpendicularly on flat face）
0～100μｍ ： ±１μｍ (Fe/NFe substrates) or ±2％ of reading
101μm～2.5mm ： ±2% (Fe substrate)
101μm～2.0mm ： ±2% (NFe substrate)
　Probe
One point contact constant pressure type, with Cross V cut
Measuring part:φ28mm , Probe part:φ10mm
　Additional functions
① Switching of measuring mode (hold/non-interruption) ② Auto-Power-OFF
③ Backup light ④ Switching of Display Resolutions
－
⑤ Switching of display (main/sub.)
⑥ Deletion of calibration values
⑦ Calibration 10
⑧ Upper/lower limit setting (alarm /calib.)
⑨ Statistical calculations
⑩ USB connection
　Power source Dry Battery ( LR 03 X 2 )，Continuous operation hours：25 hours
　Temperature 0～40℃ ( non-condensing )
　Dimensions & Weight 63 ( W ) x 84 ( H ) x 30 ( D ) mm ,about 125g
　Accessories Thickness standards, Zero plate for checking, Carrying case
